Co-Rotating Twin Screw Extruder

Co-Rotating Twin Screw Extruder

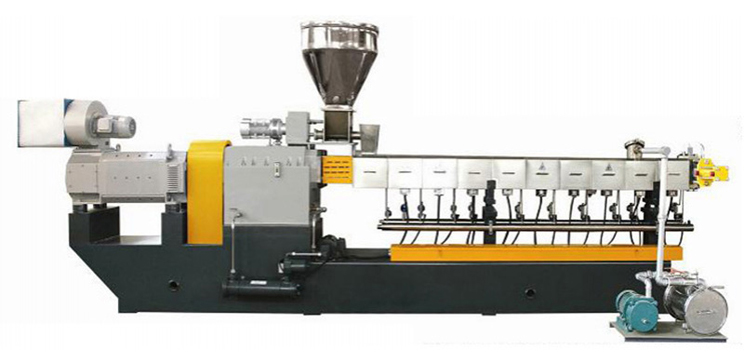

The S series co-rotating twin screw extruder is excellent for pairing with a medium to low yield granulating machine. Highly accurate and abrasion resistant screws and barrels, and a high quality transmission case ensure the extruder runs smoothly.

Parameters

Model Screw Diameter (mm) L/D Ratio Screw Speed (rpm) Main Motor Power (kW) Load Torque (Nm/cm3) Max. Output (kg/hr)
SHJ-S-20 21.7 32~48 600 4 4~6 2~15
SHJ-S-25 25.0 28~64 600 4~7.5 4~6 5~60
SHJ-S-35 35.6 28~64 400/600 15~18.5 4~6 30~80
SHJ-S-50 50.5 28~64 400/600 45~75 4~6 150~250
SHJ-S-65 62.4 28~64 400/600 75~110 4~6 250~300
SHJ-S-75 71.0 28~64 400/600 90~160 4~6 300~600
SHJ-S-95 92.4 28~64 400/600 132~280 4~6 900~1200
SHJ-S-135 133.0 28~48 400/600 550~750 4~6 2500~3500
Extrusion professional
We have several advantages over our competitors:
  • Strong designing strength
    We design and manufacture the screws, barrels, and extruders according to customer requirements.
  • Rich experience
    We have been in the extrusion industry for decades, and our products are used by prominent companies such as Foxconn.
  • Advanced material technologies
    Our PM-HIP processing technology increases the material density and reduces casting defects. The new design of an aluminum alloy clad layer on SiC ceramic allows the extruder to work, even in harsh conditions.
Whatever You Need
We are looking forward to your reply. If you need more information about us or customization information, please do not hesitate to contact us.
