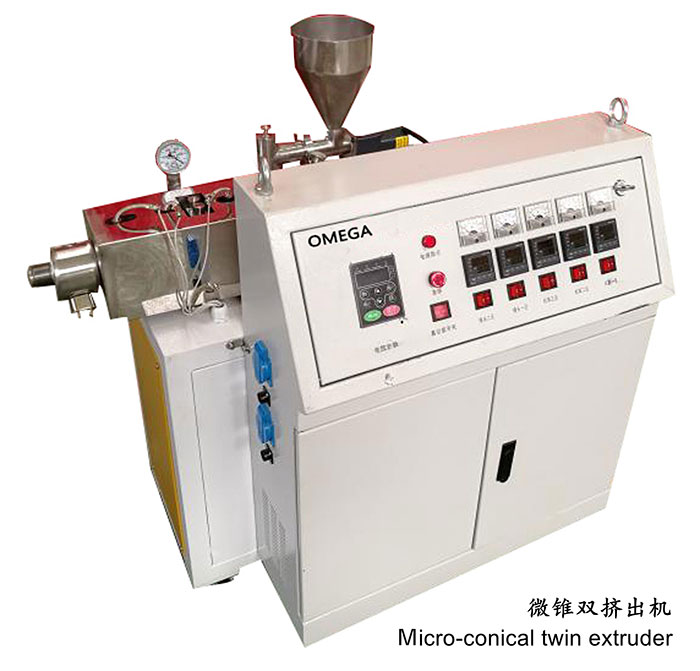

20/40 Micro-conical Twin Extruder

A. Design Concept and Configuration Features of OMEGA 20/40 Micro-conical Twin Extruder
A different direction cone twin-screw extruder with positive 8-character displacement is designed, and a reasonable screw design is more conducive to the full dispersion and distribution of each component of the material. Under the special pressure of the cone double extruder, it is more favorable for the molding of powdery polymer materials.

B. Main Technical Parameters of OMEGA 20/40 Micro-conical Twin Extruder
1. Total installed capacity: 5 KW, actual operating consumption about 1.5~2.5KW.
2. Applicable materials: All kinds of powder polymer materials, adding varieties of filler, plasticizer, additives and toner, etc.
3. Yield: 2~8kg/hr( Yield varies according to process formulation requirements).
4. Extruder Size: 460mm*800mm*1030mm.
5. List of Unit:
1) 1 set of OMEGA 20/40 Extrusion System
3) 1 set of Vacuum Exhaust System
4) 1 set of Electrical Control System
5) 1 Set of Accessories

C. Configuration of Micro-conical Twin Extruder
1. Power System
1.1 High-end AC inverter motor, 2.2KW, 3-AC380V, 50Hz, made in China.
1.2 Motor speed: 970rpm
1.3 Frequency converter of Inviteron brand
1.4 Integrated installation of mainframe with a motor
2. Transmission box
2.1 Includes reduction gear box and distribution gear box
2.2 Speed ratio: 16:1
2.3 Single stage oil infiltration system
2.4 The product design adopts the Chinese ZBJ19009-88 standard technical specification, the gear and the shaft type parts adopt one kind of high strength alloy steel material, the gear manufacture precision conforms to Chinese GB10095-88, of 6 grade precision with hardness HRC 60 tooth. The output shaft end is equipped with a super-specification thrust bearing to withstand the rear thrust of the screw. Bearing, oil seal and other main standard parts are domestic high-quality products. The transmission box has the characteristics of strong bearing capacity, stable transmission, low noise and high efficiency.
3. Screw
3.1 Screw diameter: Conical with small end diameter ￠20mm / large end diameter ￠40mm
3.2 Screw length: 460mm
3.3 Maximum screw speed: 0~60rpm
3.4 Screw material and hardening: Made form nitridable steel 38CrMoAl, The hardness ofnitration case is 950～1020HV and its depth is 0.50mm～0.80mm.
3.5 Maximum torque of single screw: 160 Nm
4. Barrel
4.1 Effective length of barrel: 330mm
4.2 Material and hardening of barrel: Made form nitridable steel 38CrMoAl, The hardness ofnitration case is 950～1020HV and its depth is 0.50mm～0.80mm.
5. Temperature Control System
5.1 Instrument automatic control way, using Huibang brand temperature control meters that whth an accurate temperature measurement, temperature control accuracy is ±2℃.
5.2 The barrel is equipped with 3 sections of temperature control and the die is equipped with 2 sections of temperature control to be reserved.
5.3 The barrel is heated by the mica heaters with outer stainless steel plate, small and beautiful appearance, large cooling air volume, high cooling efficiency and low noise.
Heating power 2.2KW, power supply by 2- AC220V, 50Hz.
5.4 Barrel equipped with domestic high-quality brand centrifugal fan, power 120W/Section.
6. Vacuum Exhaust System
6.1 Vacuum pump motor power: 0.15  KW
6.2 Limit vacuum: 0.08MPa
6.3 Configuration of Vacuum Display Meters
6.4 Configuration of Dust filters
7. Electrical control system
7.1 Main Motor 2.2 KW with frequency control
7.2 5 sections of temperature control, 2 sections reserved
7.3 Independent horizontal electric control cabinet, front on the side of the extruder, surface spray plastic treatment.

The technical configuration above is for reference only, we can specially design and configure various special extruders according to users' different operating raw materials and production products, as well as other special requirements.

Chief Engineer Office
Shanghai Omega Machinery Co., Ltd.

We have several advantages over our competitors:

• Strong designing strength
  We design and manufacture the screws, barrels, and extruders according to customer requirements.
• Rich experience
  We have been in the extrusion industry for decades, and our products are used by prominent companies such as Foxconn.
• Advanced material technologies
  Our PM-HIP processing technology increases the material density and reduces casting defects. The new design of an aluminum alloy clad layer on SiC ceramic allows the extruder to work, even in harsh conditions.

We are looking forward to your reply. If you need more information about us or customization information, please do not hesitate to contact us.
